Sinbosen K4-1400 1U Amplificador de potencia digital de 4 canales Clase D 1000W Amp
Amplificador de 4 canales

Sinbosen K4-1400 1U Amplificador de potencia digital de 4 canales Clase D 1000W Amp

Artículo No.: K4-1400
Modelo: K4-1400
Canal: amplificador de potencia de 4 canales
Característica: 1U / Amplificador digital / 4CH / Clase D/Para altavoz de rango completo
Potencia de salida:
Potencia estéreo de 8 Ω (RMS): 1400 W x 4 canales
Descripción


1U Digital Amplifier K4-1400
Output Power 1 KHz, <0.05%THD 8Ω/Stereo    4CHX1400W
4Ω/Stereo    4CHX2200W
8Ω/Bridge    2CHX4500W
Class Class D Power Amplifier
THD (20Hz-20kHz for 1W) <0.1%
THD (1kHz and 1 dB below clipping) <0.05
DSP Processor NO
Signal Noise Ration >106dB
Frequency Response(+/-0.1dB) 10Hz-34kHz
Damping coefficient >600
Impedance(balanced/unbalanced) 20KQ/10KQ
Gain (optional) 0.775V/1V/32dB
Output socket Spe akon Connectors
Input socket Combo XLR type, 3pin
Link socket XLR type,3pin male(NEUTRIK)
Protection   Short circuit, open dircuit, thermal, overload,DC,super audio protection
Power Requirement 90-265V~50Hz(PFC)
Size(WxHxD) 483x429x44mm
Weight(net) 10.5Kg

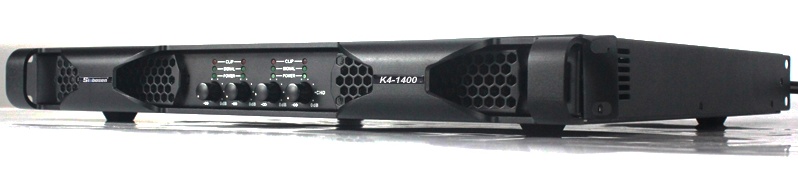

K4-1400 Digital Power Amplifier
K4-1400 1U 4-channel power amplifier, small size, light weight, easy to install. The circuit uses a Class D power amplifier module, a reliable and efficient R-SMPS stabilized power supply system, which has extremely high efficiency and controllability, and also has extremely high power density, which can adjust the current waveform according to the AC voltage waveform. Wide voltage operation, adapt to the global scope, can carry higher power.

Digital Amplifier K4-1400 Feature:
1. Use ClassD power amplifier module. Unique peak clipping limiter and ripple reduction.
2. The perfect protection system effectively reduces the losses caused by improper use.
3. The perfect circuit design makes the bass strong and powerful, and the mid and high frequencies are transparent and clear.
4. 1U design, its light weight and very small space occupation rate.
5. It is widely used in large and medium-sized bars, banquet halls, and outdoor performances.
