Altavoz activo
HDL20-A Line Array Dual 10" Ferrite Powered Speaker
Artículo No.: HL20-A
Drivers: 2x10"/ 1x3"
Impedance: 8Ω
Frequency Response(3dB): 55Hz~20KHz
Max SPL(@1m): 135db
Impedance: 8Ω
Frequency Response(3dB): 55Hz~20KHz
Max SPL(@1m): 135db
Descripción
Composite Cabinet Active Line Aray Parameter |
|
Frequency Response |
55 Hz – 20 000 Hz
|
|
Max SPL @ 1 m
|
135 dB
|
|
Horizontal coverage angle
|
100°
|
|
Vertical coverage angle
|
15°
|
|

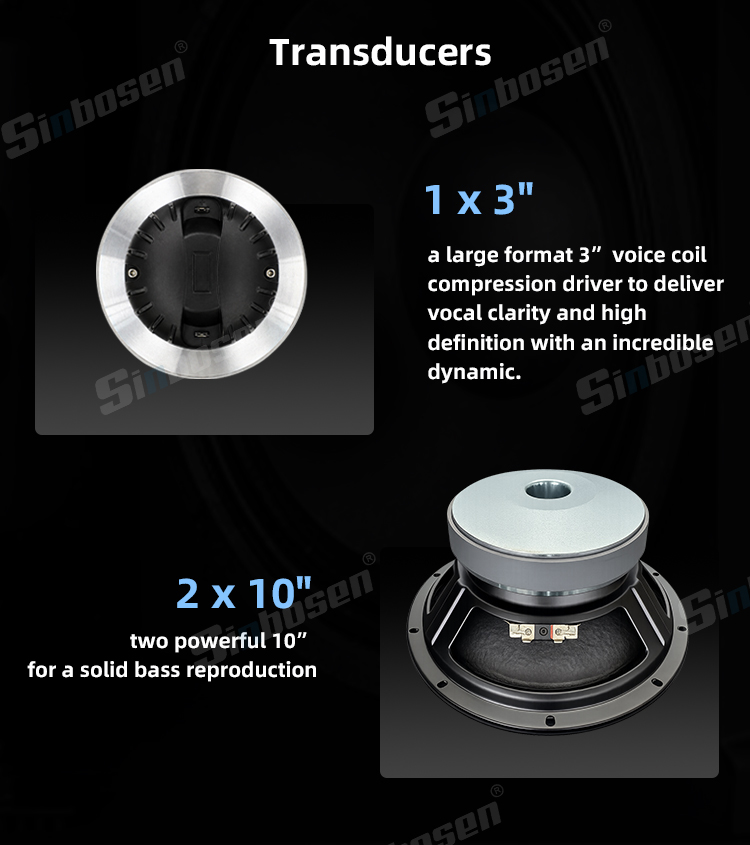

Compression Driver
|
1 × 3''
|
|
Woofer
|
2 × 10'' Ferrite
|
|
Input signal
|
bal / unbal
|
|
Input connectors
|
XLR
|
|
Output connectors
|
XLR
|
|
Controls
|
Cluster, HF, High curving, Indoor
|
|
Cooling
|
Convection
|
|
Connections
|
Powercon IN / OUT
|
|

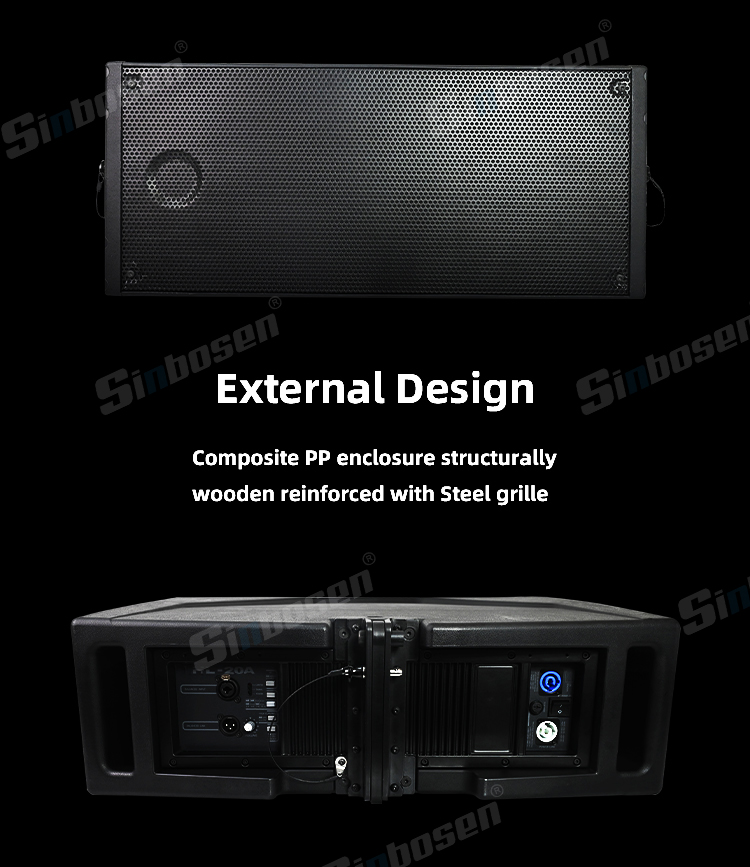

Cabinet / Case Material
|
PP Composite
|
|

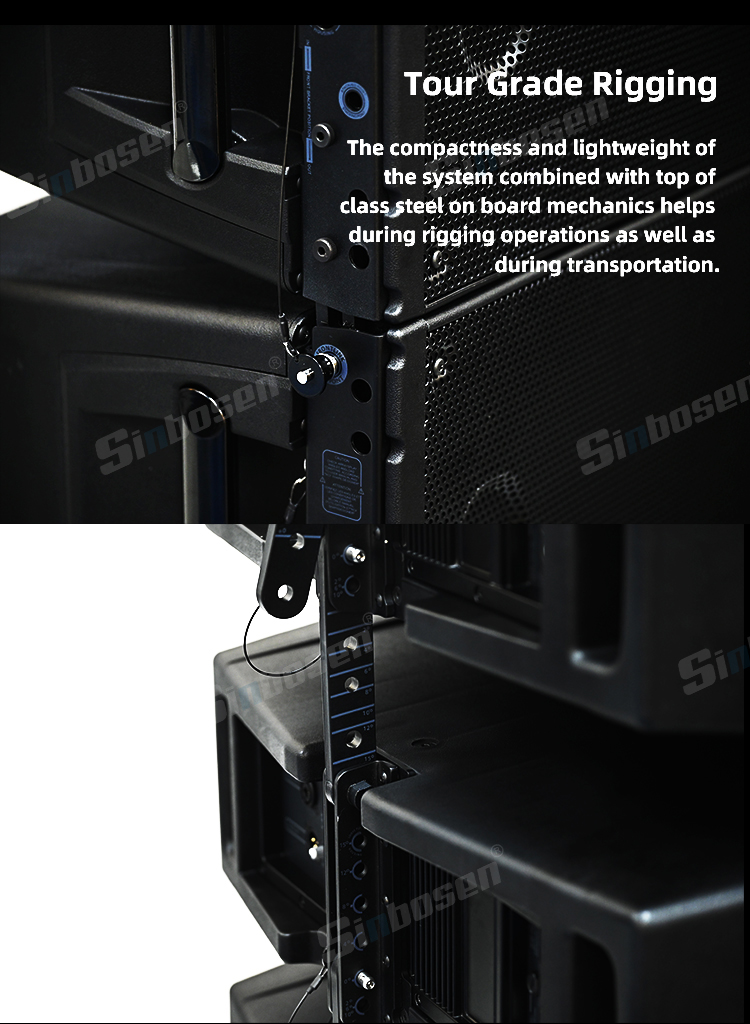

Hardware
|
Rigging flyware
|
|
Handles
|
2 side, 2 back
|
|
Grille
|
Steel
|
|
Color
|
Black
|
|

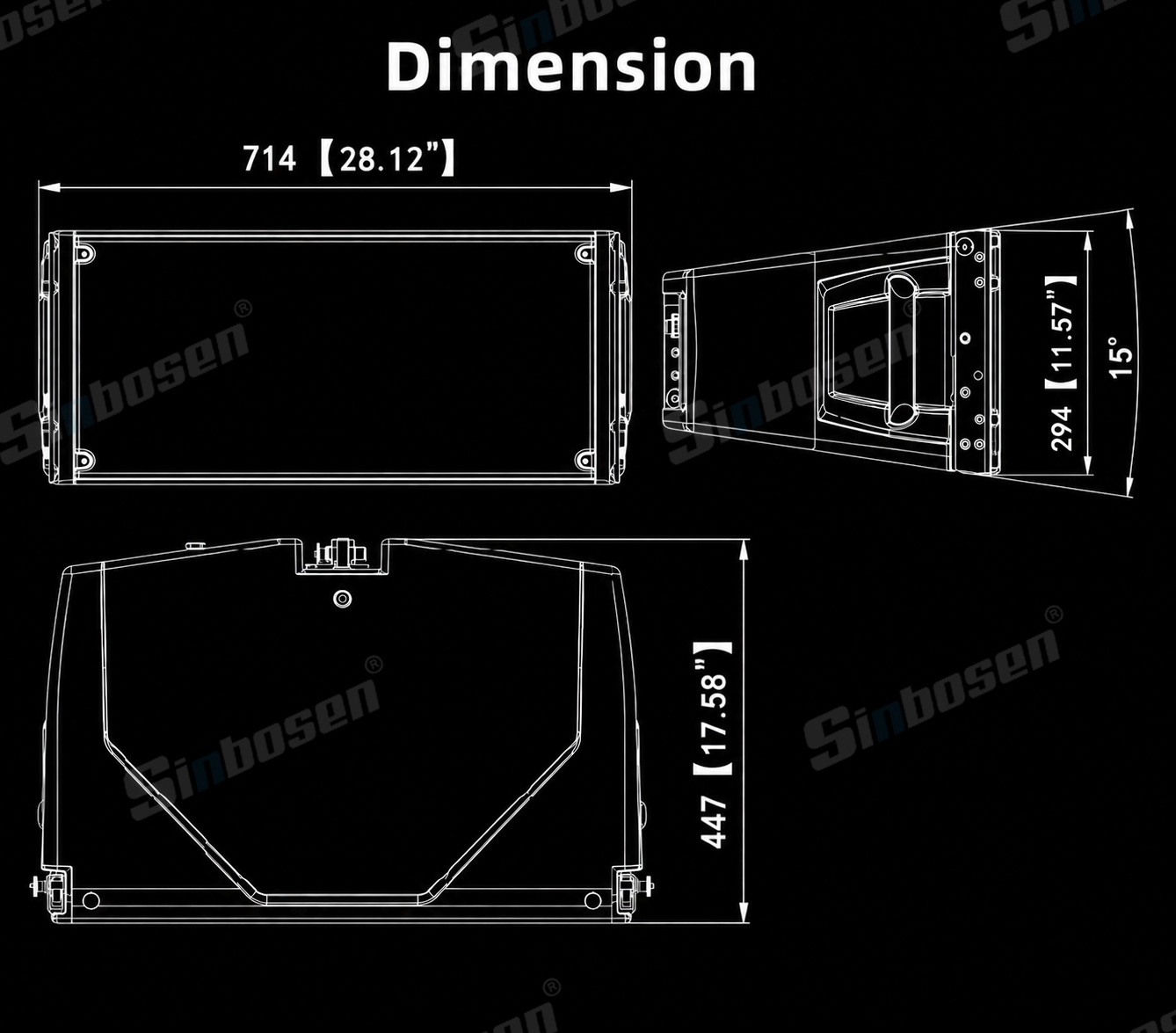

Dimensions (h x w x d)
|
294 x 705 x 445 mm
|
|

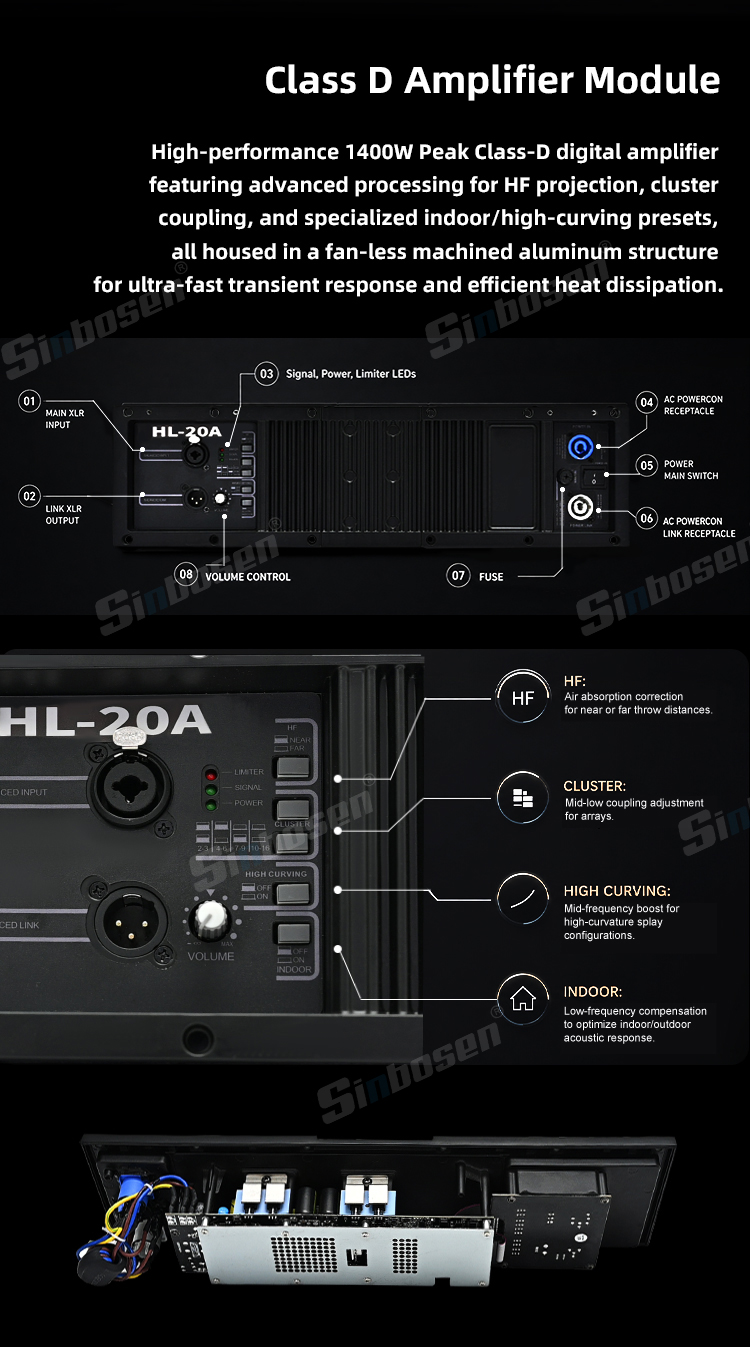

Active module
|
2CH class-D digital amplifier
|
|
HL-20A SPEAKER FEATURE
|
|
— Built-in powerful Active Module with smart presets for any venue
|
|
— Quality Transducers deliver punchy bass and crystal-clear highs
|
|
— Ultra-fast rigging: fly or stack in seconds, no tools needed
|
|
— Modular design pairs with matching sub for full-range system
|
|
— Tour-grade composite cabinet—light, rugged, road-ready
|

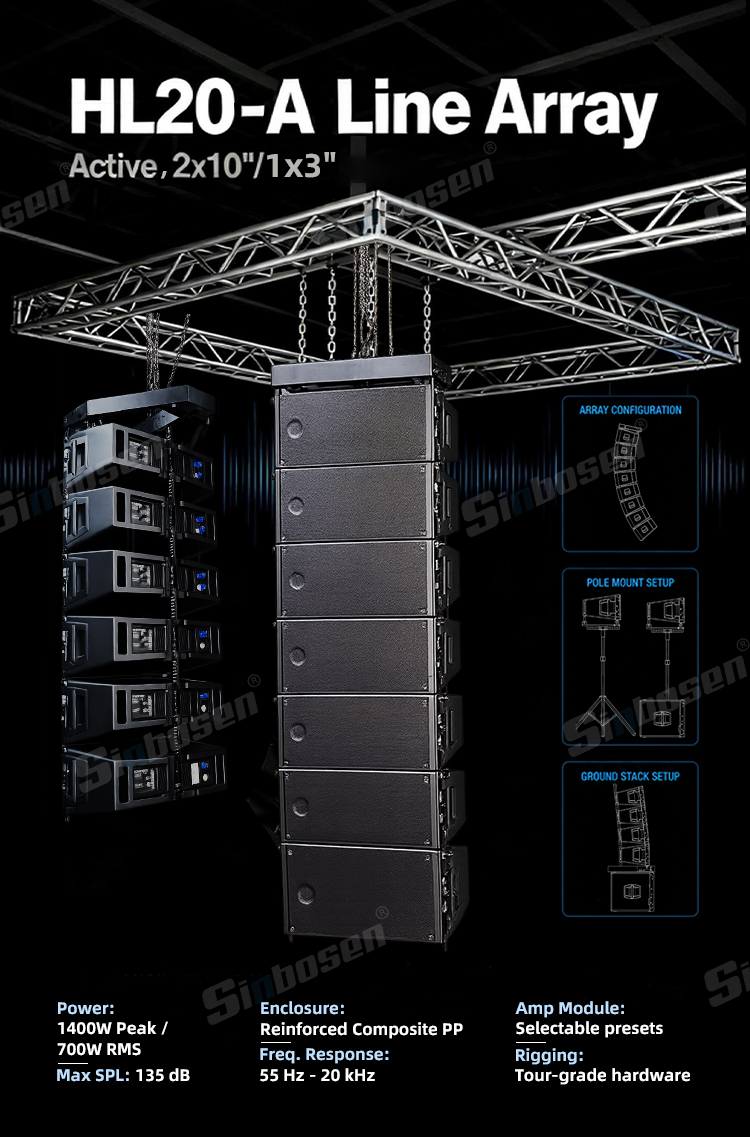

The HL-20A is a compact, high-output active line array module designed for live sound reinforcement and demanding installations. Powered by a 1400W Peak Class-D digital amplifier, it features dual 10-inch woofers for deep, punchy low-mids and a large-format 3-inch voice coil compression driver that ensures crystal-clear vocal clarity and high-definition dynamic output. Enclosed in a durable composite PP cabinet with integrated rigging hardware, the HL20-A delivers up to 135 dB max SPL, making it a reliable workhorse for fast deployment and concert-grade audio coverage.
