Amplificador de 4 canales de audio de escenario con condensador negro 10Q
Amplificador para altavoz superior

Amplificador de 4 canales de audio de escenario con condensador negro 10Q

Artículo No.: DS-10Q Black Capacitor
Model: DS-10Q Black Capacitor
8Ω Stereo Power (RMS): 1,350W X 4CH
4Ω Stereo Power (RMS): 2,100W X 4CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
Descripción
  FP6000Q FP8000Q FP10000Q FP20000Q FP22000Q
Channels 4-Channel Power Amplifier
Class Class TD Power Amplifier
8Ω Stereo Power (RMS) 625WX4 1000WX4 1350WX4 2200WX4 2500WX4
4Ω Stereo Power (RMS) 1300WX4 1600WX4 2100WX4 4000WX4 4650WX4
8Ω Bridged Power(RMS) 2500WX2 3200WX2 4200WX2 8000WX2 9300WX2
4Ω Bridged Power(RMS) 3000WX2 3800WX2 5000WX2 9000WX2 15000WX2

  FP7000 FP9000 FP14000 FP24000
Channel 2 Channel Power Amplifier
Class Class TD Power Amplifier
8Ω Stereo Power (RMS) 1500WX2 1800WX2 2400WX2 4200WX2
4Ω Stereo Power (RMS) 2800WX2 3000WX2 4400WX2 7500WX2
8Ω Bridged Power (RMS) 5600W 6000W 8800W /
4Ω Bridged Power (RMS) 7000W 9000W 14000W /

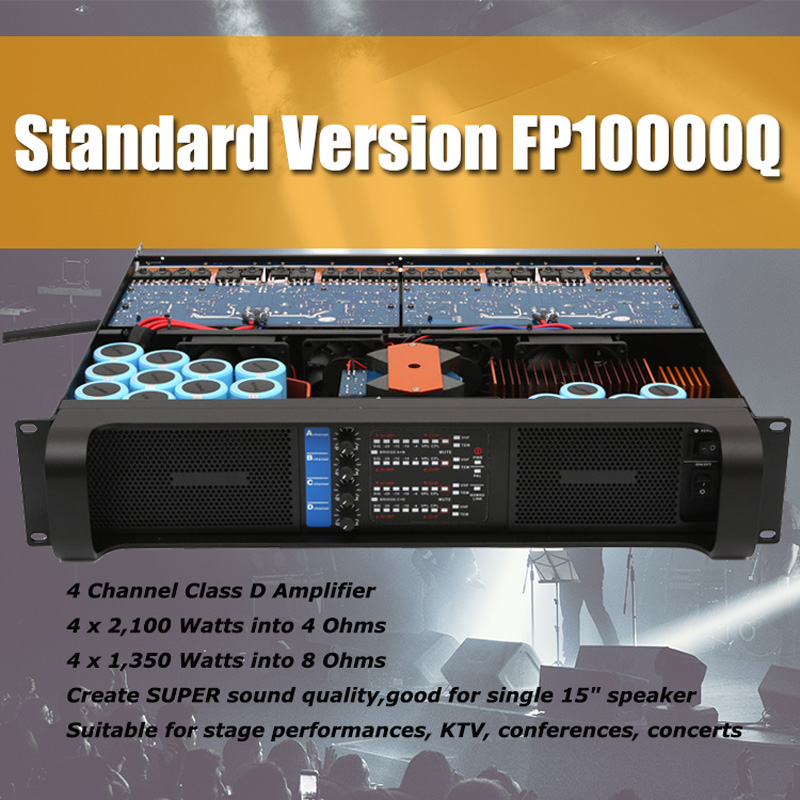

DS-10Q amplifier performance description

-4 Channel Class TD Switching power audio amplifier.
-4* 2100 Watts into 4Ohms, 4* 1350 Watts into 8Ohms.
-Create SUPER sound quality.
-Good for single 15"/dual 15" speaker.
-Separately controllable on Gain.
-Scalable Voltage Peak Limiter (VPL).
-Bridge-mode operation for Touring Applications.
-Comprehensive protection scheme.

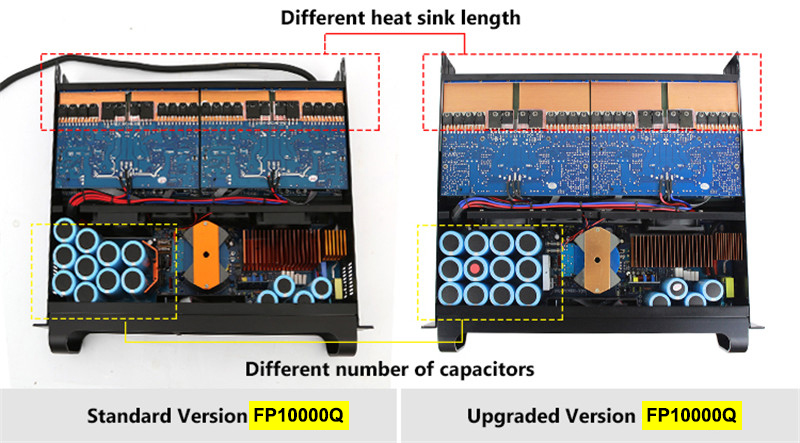

-Extended heatsink to 69 mm.

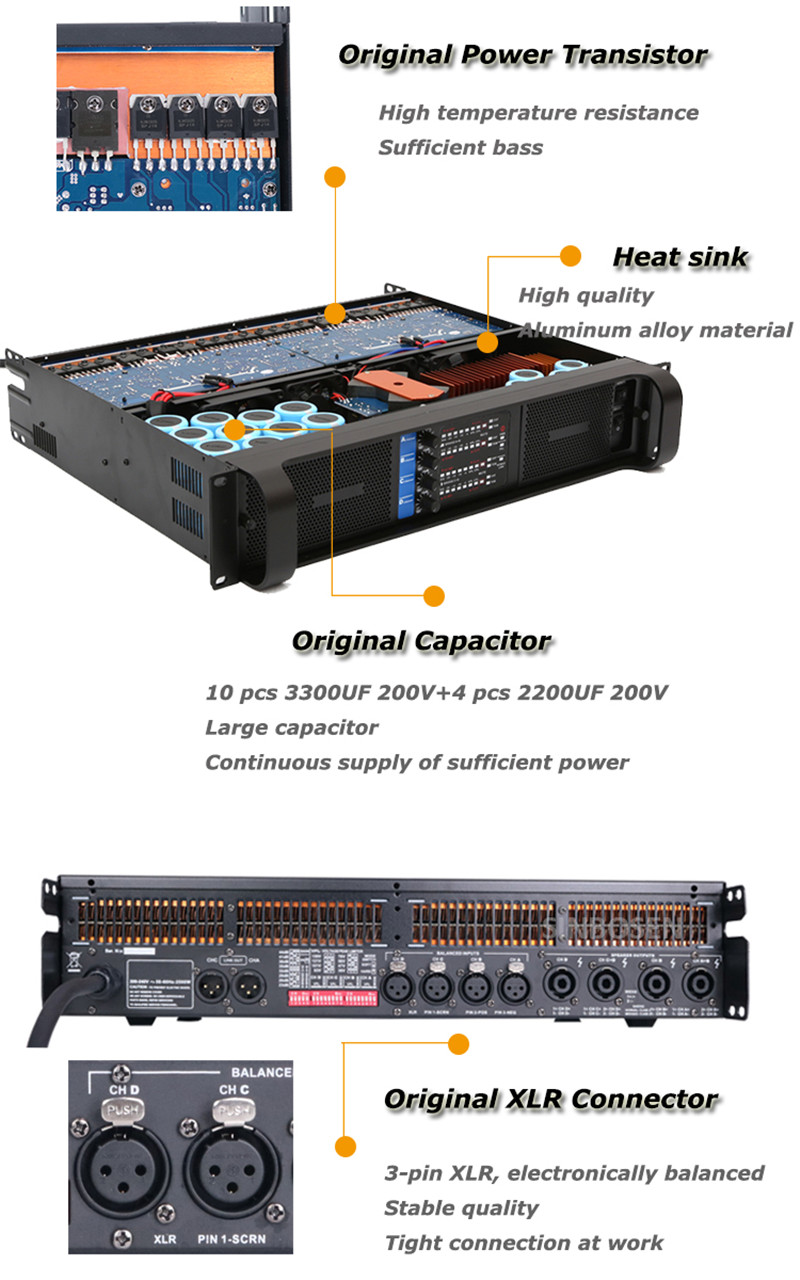

-Use high-quality capacitor 3300uf 200V.

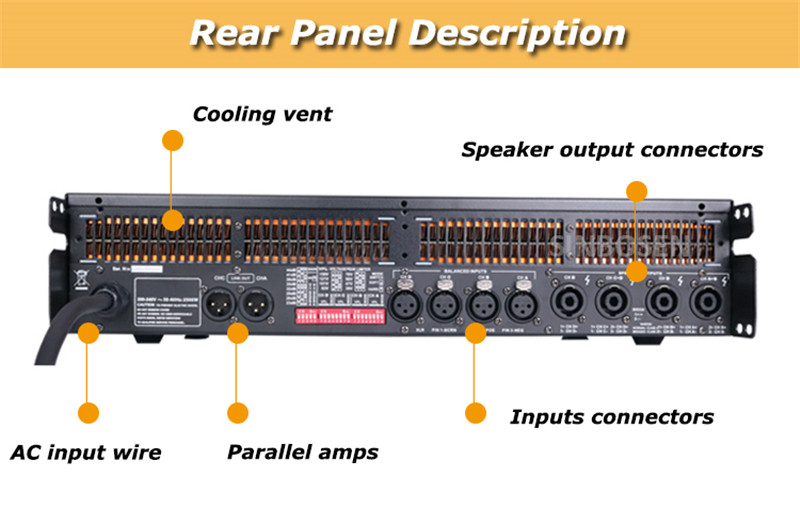

-High-quality speakon connectors.
-High-quality fans from TAIWAN.
